Name: 包氟密封圈
Brand: NEWMAN 纽曼
SKU: NG-0017

PTFE包EPDM橡胶卡盘密封垫

当生产工艺需要采用特氟龙材质，但工况存在温度交替变化，传统实心特氟龙三卡箍垫片会因此出现冷流、蠕变并引发渗漏时，包覆聚四氟乙烯包覆垫片是理想选型。特氟龙 / 聚四氟乙烯包覆垫片由纯正特氟龙外壳制成，内部可选用三元乙丙橡胶（EPDM）或氟橡胶（Viton）作为填充芯材。产品适配标准型、Schedule 5以及 ISO 规格卡套接头；拥有美国食品药品监督管理局（FDA）、3A 卫生标准、USP 六级全套资质认证。

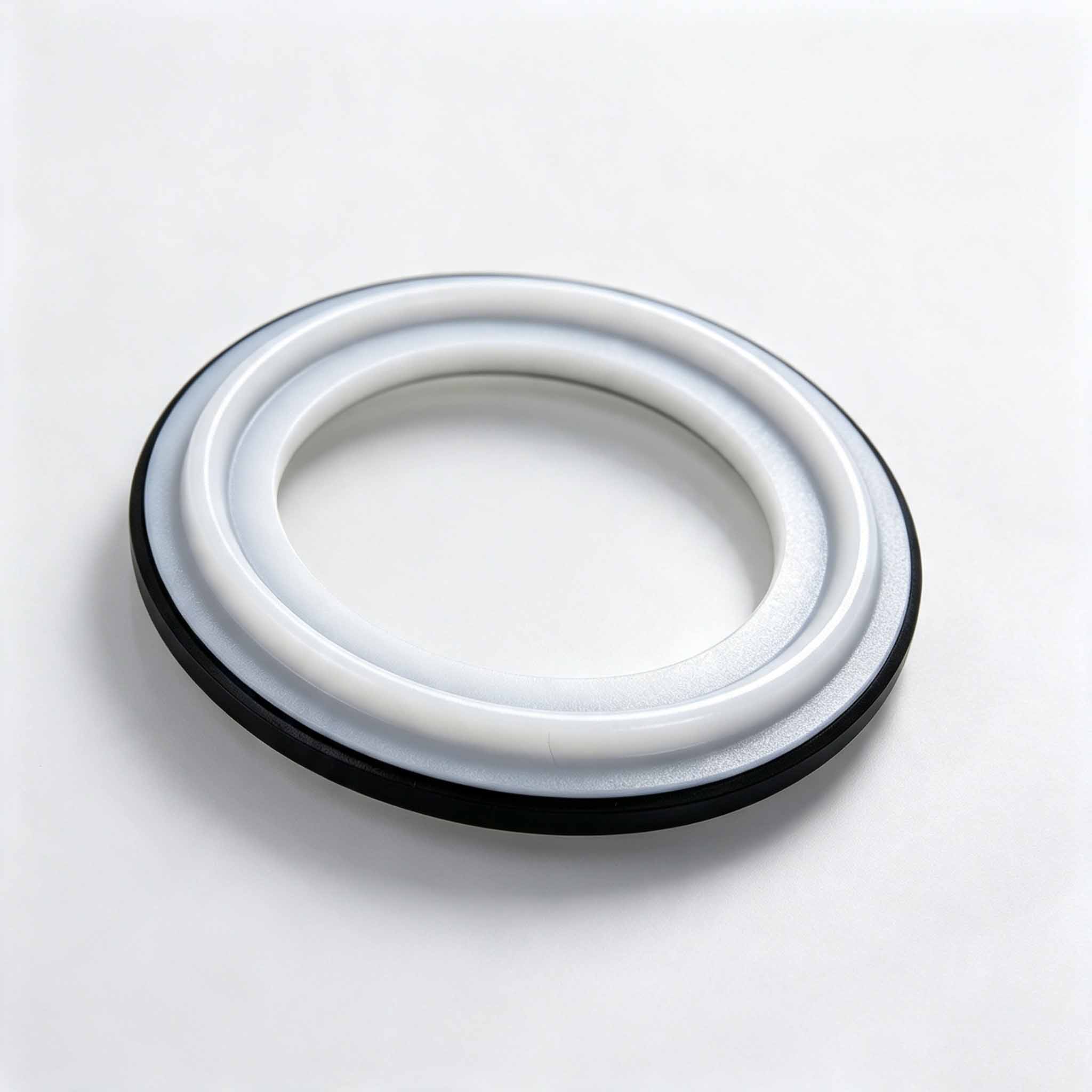

况存在温度交替变化

PTFE 包覆垫片：外层聚四氟乙烯耐药液腐蚀、洁净不析出；内层弹性橡胶提供回弹力，弥补纯 PTFE 过硬、回弹差的缺陷温度循环交变（反复高温灭菌 + 常温生产交替工况）

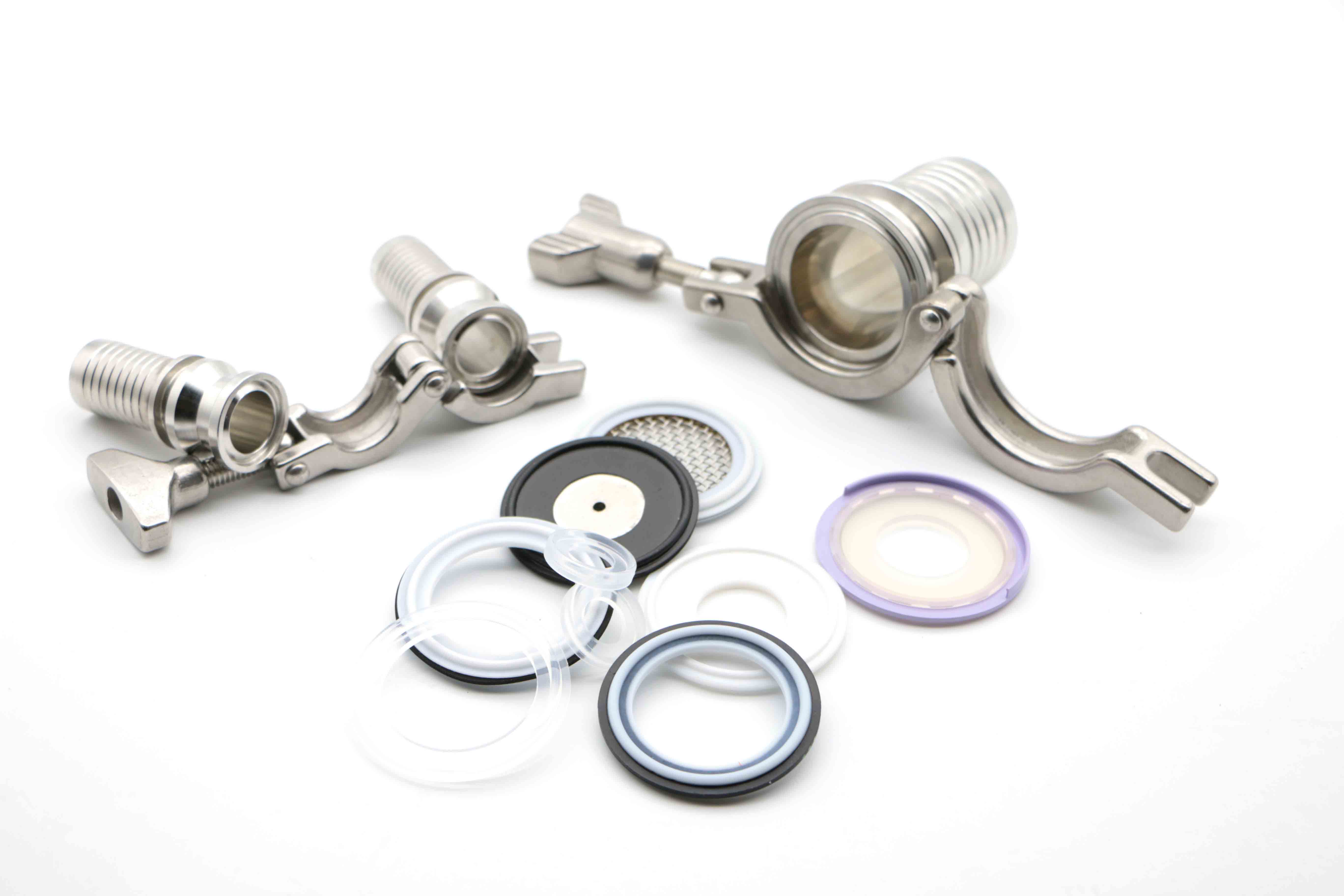

EPDM&VITON氟橡胶供选择

EPDM 三元乙丙橡胶：耐热水、蒸汽、水基药液，性价比高 Viton 氟橡胶：耐酸碱、有机溶剂、化学清洗剂，耐受更广严苛腐蚀工况 ferrules：管道卡套、管端头焊环 3A 认证：北美食品制药卫生设备权威标准

规格参数

FDA & 3A

Part Number	Size
42MPGRE	½" & 3/4"
42MPGRV	½" & 3/4"
40MPGRE	1" - 4"
40MPGRV	1" - 4"
40MPOGRE	6" - 12"
40MPOGRV	6" - 12"
40MVGR*	1" - 10"

FDA & USP Class VI

Part Number	Size
42RXGRE	½" & 3/4"
42RXGRV	½" & 3/4"
40RXGRE	1" - 4"
40RXGRV	1" - 4"
40ROXGRE	6" - 12"
40ROXGRV	6" - 12"
40RXVGR	1" - 10"
ISOFIKGR**	Please see sizing guide

FDA & 3A TYPE III Imperial Size Gaskets Teflon with EPDM Inserts

Part Number	Size
42MPGRE0050	1/2"
42MPGRE0075	3/4"
40MPGRE0100	1"
40MPGRE0150	1 1/2"
40MPGRE0200	2"
40MPGRE0250	2 1/2"
40MPGRE0300	3"
40MPGRE0400	4"
40MPGRE0600	6"
40MPGRE0800	8"
40MPGRE1000	10"
42MPGRE1200	12"

USP Class VI TYPE III Imperial Size Gaskets Teflon with EPDM Inserts

Part Number	Size
42RXGRE0050	1/2"
42RXGRE0075	3/4"
40RXGRE0100	1"
40RXGRE0150	1 1/2"
40RXGRE0200	2"
40RXGRE0250	2 1/2"
40RXGRE0300	3"
40RXGRE0400	4"
40RXGRE0600	6"
40RXGRE0800	8"
40RXGRE1000	10"
40RXGRE1200	12"

FDA & 3A TYPE III Imperial Size Gaskets Teflon with Viton Inserts

Part Number	Size
42MPGRV0050	1/2"
42MPGRV0075	3/4"
40MPGRV0100	1"
40MPGRV0150	1 1/2"
40MPGRV0200	2"
40MPGRV0250	2 1/2"
40MPGRV0300	3"
40MPGRV0400	4"
40MPGRV0600	6"
40MPGRV0800	8"
40MPGRV1000	10"
40MPGRV1200	12"

USP Class VI TYPE III Imperial Size Gaskets Teflon with Viton Inserts

Part Number	Size
42RXGRV0050	1/2"
42RXGRV0075	3/4"
40RXGRV0100	1"
40RXGRV0150	1 1/2"
40RXGRV0200	2"
40RXGRV0250	2 1/2"
40RXGRV0300	3"
40RXGRV0400	4"
40RXGRV0600	6"
40RXGRV0800	8"
40RXGRV1000	10"
40RXGRV1200	12"

FDA & 3A Type III Schedule 5 Piping Gaskets Teflon with EPDM Inserts

Part Number	Size
40MVGR0100	1"
40MVGR0400	4"
40MVGR0600	6"
40MVGR0800	8"
40MVGR1000	10"

USP Class VI Type III Schedule 5 Piping Gaskets Teflon with EPDM Inserts

Part Number	Size
40RXVGR0100	1"
40RXVGR0400	4"
40RXVGR0600	6"
40RXVGR0800	8"
40RXVGR1000	10"

USP Class VI ISO 2852 Type III Flanged Teflon with Viton Insert

Part Number	Tube Size	Flange ID	OD
ISOFIXRGR15A	21.30 x 1.60 MM	34 MM	18.10 MM
ISOFIXRGR15B	21.30 x 1.60 MM	50.5 MM	18.10 MM
ISOFIXRGR20	26.90 x 1.60 MM	50.50 MM	23.70 MM
ISOFIXRGR25	33.70 x 2.00 MM	50.50 MM	29.70 MM
ISOFIXRGR32A	42.40 x 2.00 MM	50.50 MM	38.40 MM
ISOFIXRGR32B	42.40 x 2.00 MM	64.00 MM	38.40 MM
ISOFIXRGR40	48.30 x 2.00 MM	64.00 MM	44.30 MM
ISOFIXRGR50	60.30 x 2.00 MM	77.50 MM	56.30 MM
ISOFIXRGR65	76.10 x 2.00 MM	91.00 MM	72.10 MM
ISOFIXRGR80	85.00 x 2.00 MM	106.00 MM	81.00 MM

Mini Envelope Clamp Gaskets made with Teflon™ fluoropolymer

Part Number	Description	Size
A42MP-GR	Teflon™ fluoropolymer Standard EPDM fillers (Also available with Viton™ fillers)	½" & 3/4"

Envelope Clamp Gaskets made with Teflon™ fluoropolymer

Part Number	Description	Size
A40MP-GR	Teflon™ fluoropolymer Standard EPDM fillers (Also available with Viton™ fillers)	1", 1 ½", 2", 2 ½", 3", 4", 6", 8", 10" & 12"
